Description

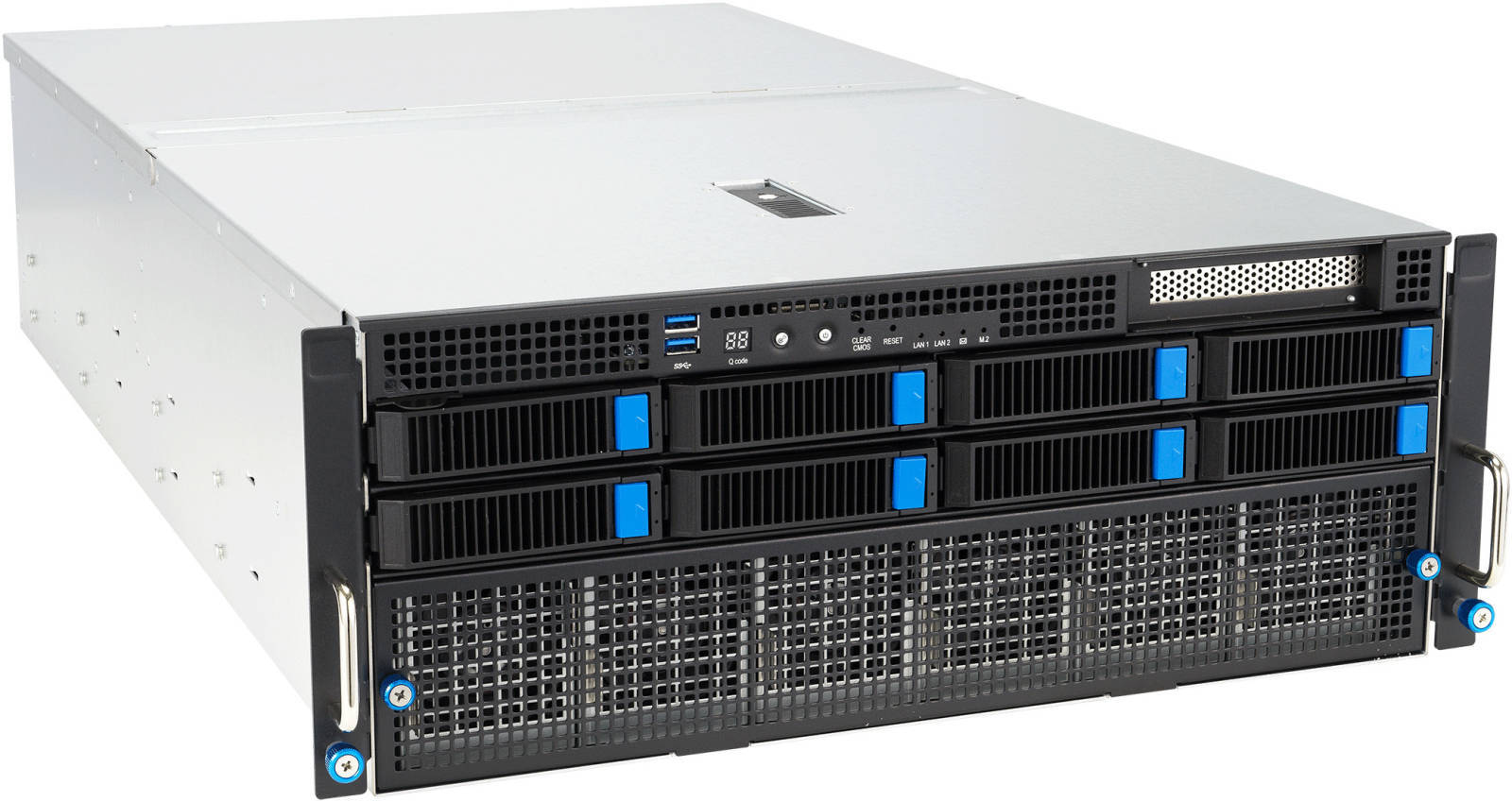

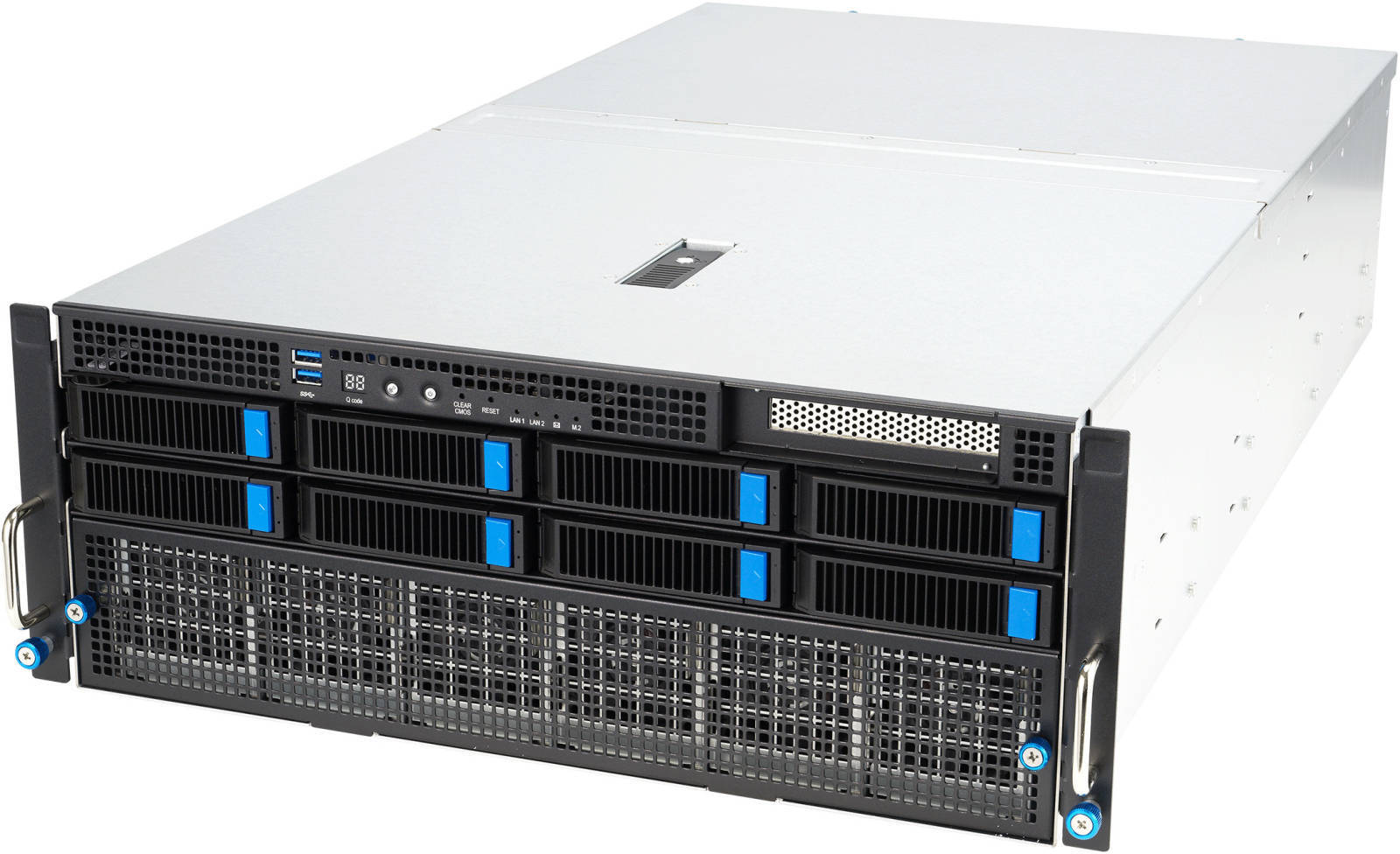

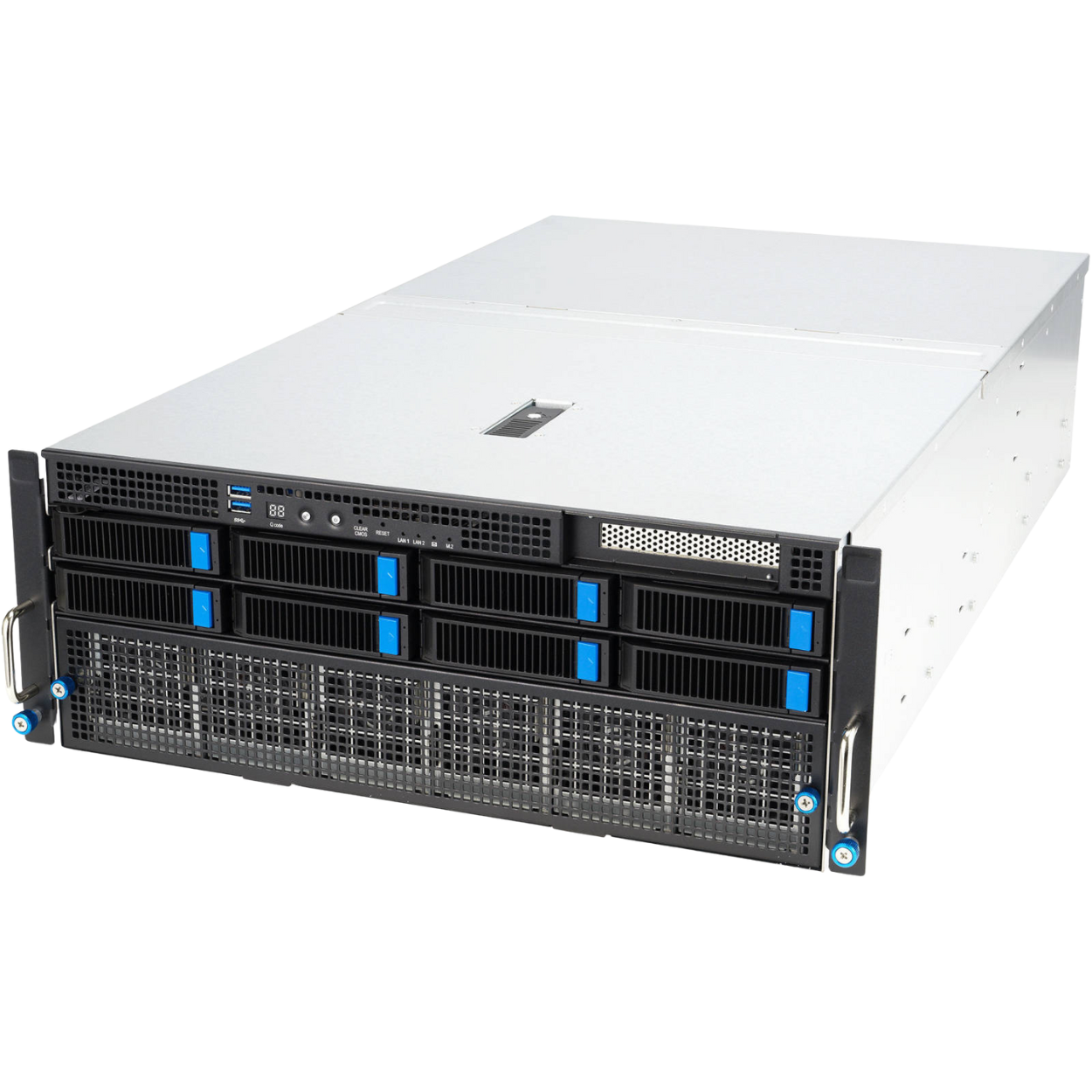

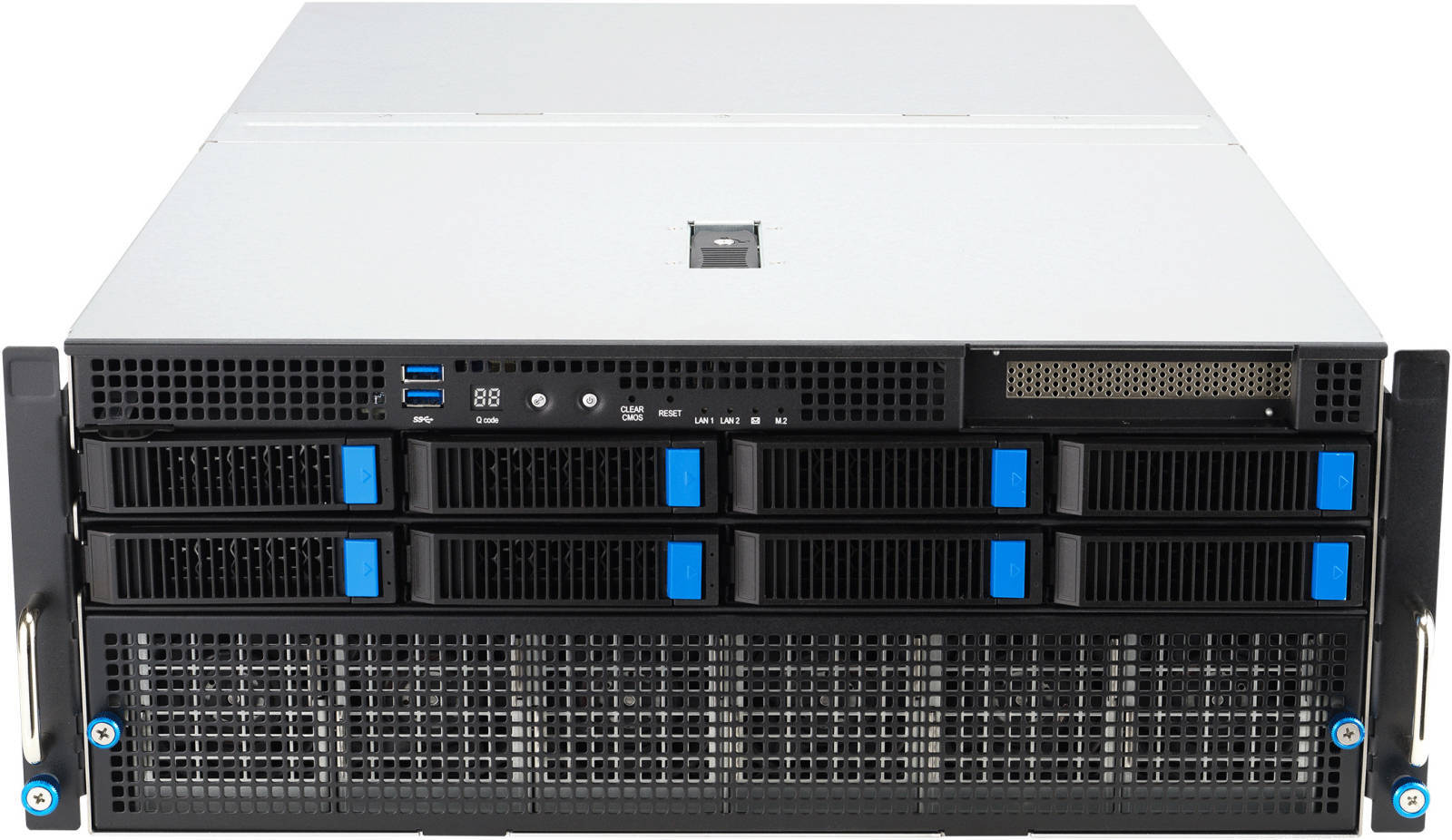

ASUS ESC8000A-E12
ASUS ESC8000A-E12 HPC AMD EPYC 4U Server, AMD 2x EPYC 9754 128C 256T Up to 3.1GHz,
4x NVIDIA L40 48GB, 512GB DDR5 RAM, 4TB NVMe Gen4 SSD + 5x 3.84TB SATA Enterprise SSD,
11x PCIe 5.0 Slots, 2+2 3000W Titanium PSU
Features
- Powerful performance: Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
- AI and HPC workloads ready: Up to eight dual-slot active or passive GPUs, NVIDIA NVLink® bridge, and NVIDIA Bluefield DPU support to enable performance scaling

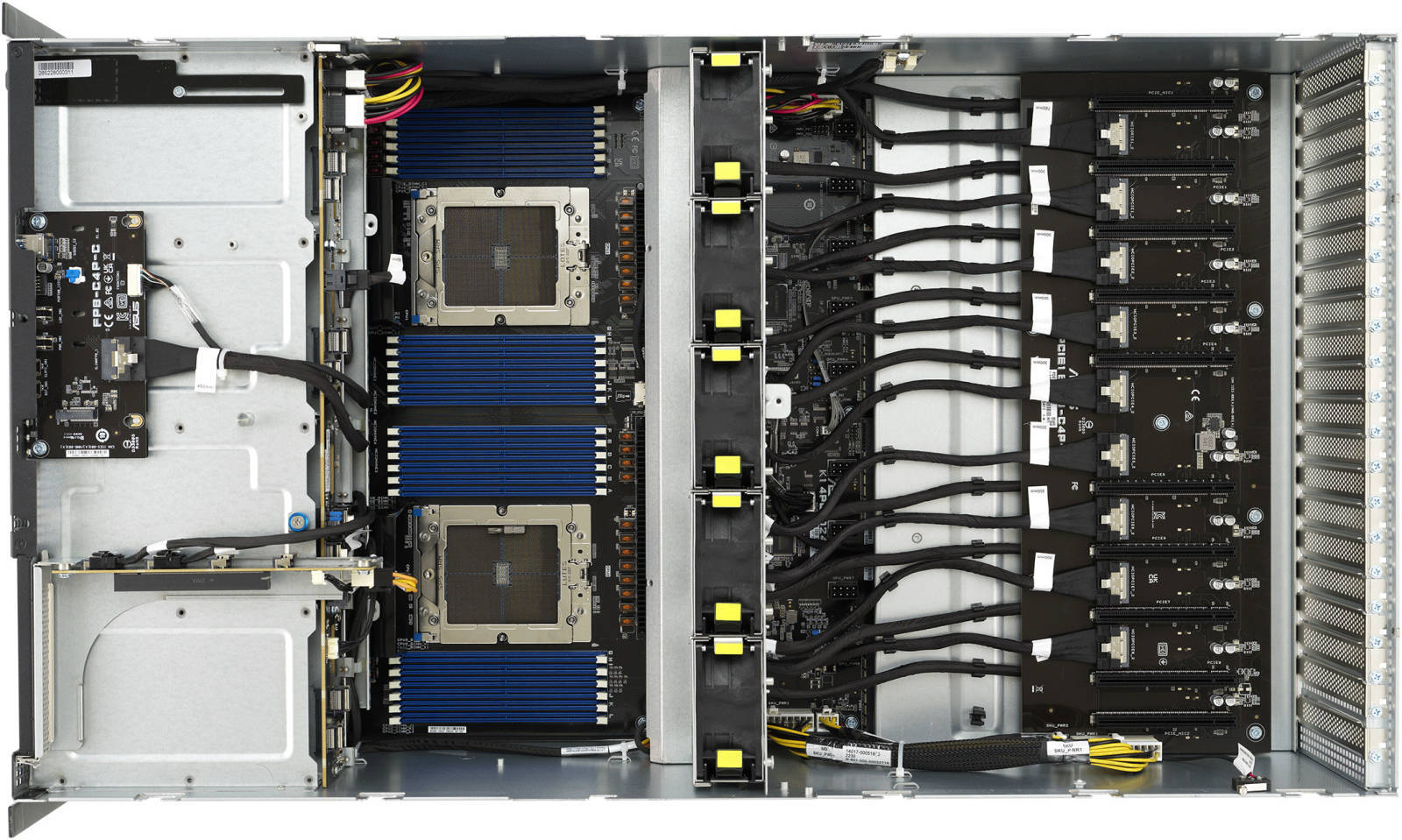

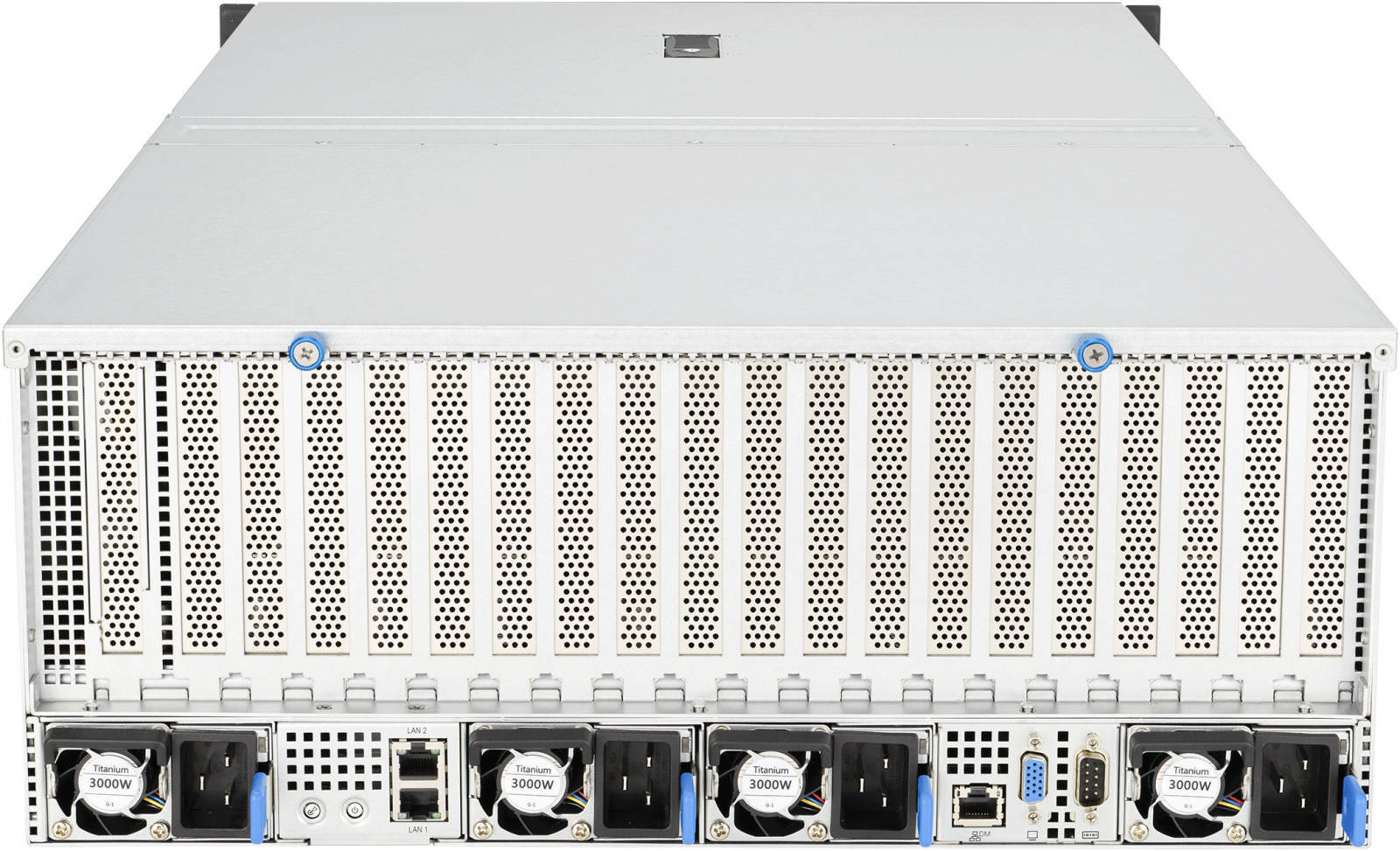

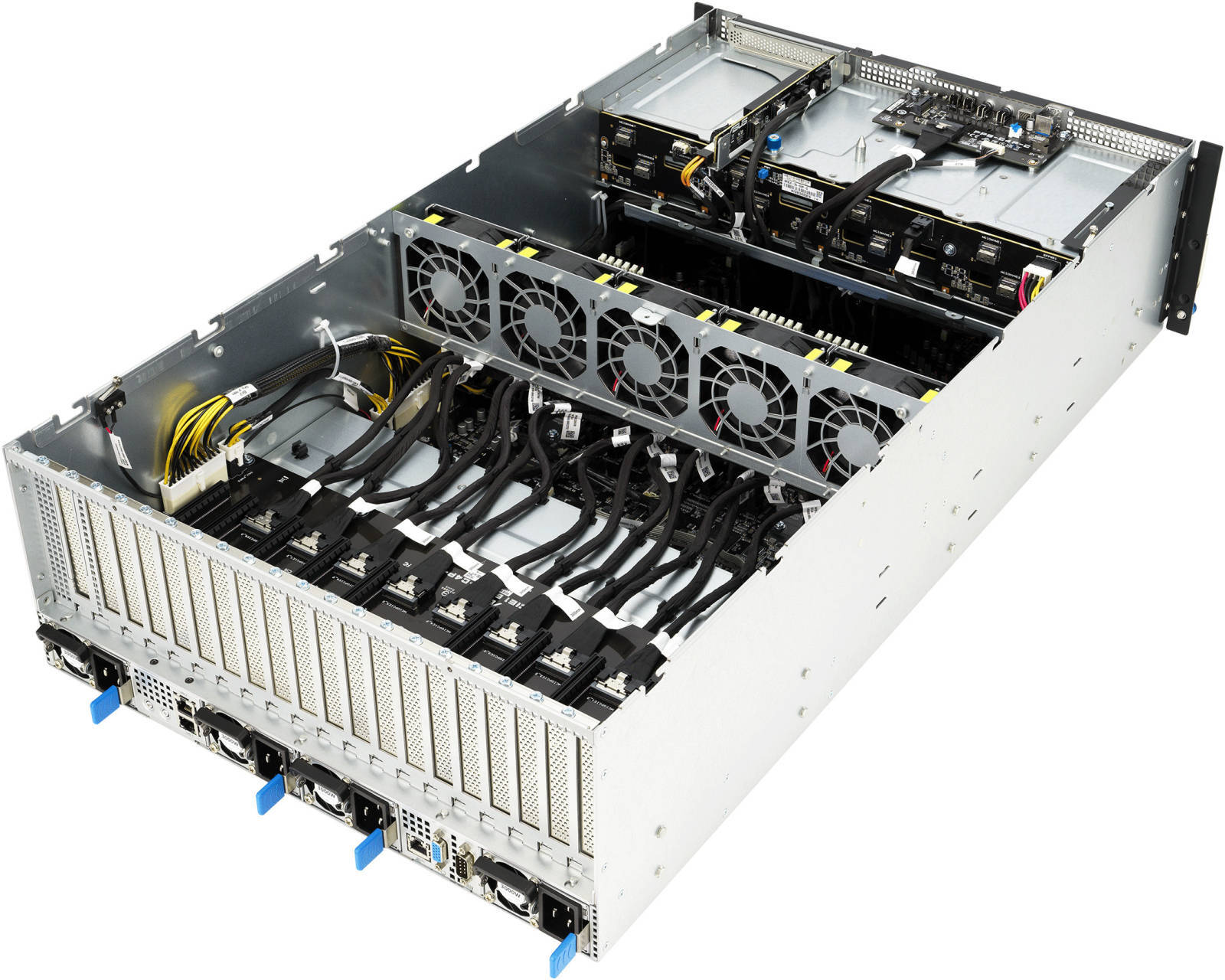

- Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to four 3000W Titanium redundant power supplies for uninterrupted operation
- Comprehensive cooling solutions: Designed for both liquid cooling and enhanced air cooling based on CPU TDP for versatile workloads

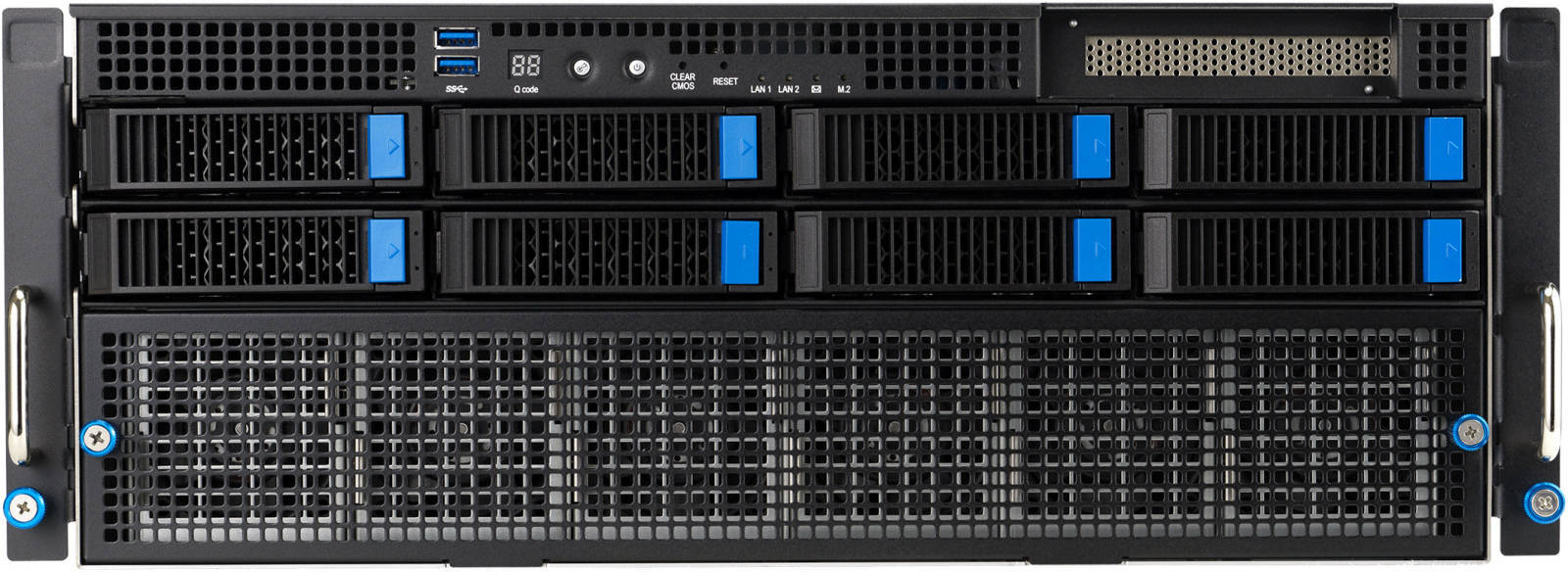

- Scale-up storage and expansion design: A total of eight bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and 11 PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
With NVIDIA L40
Delivering unprecedented visual computing performance for the data centre.
From virtual workstation applications to large-scale modelling and simulation, modern visual computing and scientific workflows are growing in both complexity and quantity. Enterprises need data centre technology that can deliver extreme performance and scale with versatile capabilities to meet the diverse computing demands of these increasingly complex workloads.
The NVIDIA® L40 GPU delivers unprecedented visual computing performance for the data centre, providing next-generation graphics, computing, and AI capabilities. Built on the revolutionary NVIDIA Ada Lovelace architecture, the NVIDIA L40 harnesses the power of the latest generation RT, Tensor, and CUDA cores to deliver groundbreaking visualization and compute performance for the most demanding data centre workloads.
Specifications
| Processor Support | 2 x Socket SP5 (LGA 6096) |
| Core Logic | AMD EPYC™ 9004 Series, 4th Generation AMD EPYC™ Processors with AMD 3D V-Cache technology |
| Memory Total Slots | 24 x DIMM slots (12 channel per CPU, 12 DIMM per CPU) |
| Memory Capacity | Maximum up to 3TB per CPU socket |
| Memory Type | DDR5 4800/4400 RDIMM/ 3DS RDIMM |
| Memory Size | 64GB, 32GB, 16GB RDIMM; 256GB, 128GB RDIMM 3DS |
| Expansion Slots | Total PCI/PCI-X/PCI-E/PIKE Slots 11 |
| Disk Controller | SATA Controller: 4 x SATA 6Gbps ports SAS Controller: Optional kits available |
| Storage Bays | 8 x 3.5″ Front Hot-swap Storage Bays (supports up to 8 x NVMe/SATA/SAS with required HBA/RAID card) |
| Networking | LAN: 2 x 10GbE LAN ports (RJ45, X710-AT2) or 2 x Gigabit LAN ports (RJ45, I350-AM2) |
| Graphic | VGA: Aspeed AST2600 64MB |
| Front I/O Ports | 2 x USB 3.2 Gen1 ports, 1 x VGA port |
| Rear I/O Ports | 1 x COM port, 2 x 10GbE/1GbE LAN ports (build for order), 1 x Management port (RJ45) |
| Switch/LED | Front and Rear Switch/LED indicators |
| OS Support | Windows Server, RedHat® Enterprise Linux, SuSE® Linux Enterprise Server, CentOS, Ubuntu, VMware |
| Management Solution | ASUS Control Center (Classic), On-Board ASMB11-iKVM for KVM-over-IP |
| Dimension | 800mm x 440mm x 174.5 mm (4U) |
| Net Weight | 27 kg (CPU, DRAM & HDD not included) |
| Gross Weight | 52 kg (CPU, DRAM & HDD not included, Packing included) |
| Power Supply | 2+2 Redundant 2600W/3000W 80 PLUS Platinum Power Supply 2+1 Redundant 3000W 80 PLUS Platinum Power Supply |
| Rating | 220-240 Vac, 15.5A(x4), 50-60 Hz |
| Environment | Operation temperature: 10℃ ~ 35℃ Non-operation temperature: -40℃ ~ 70℃ Non-operation humidity: 20% ~ 90% (Non-condensing) |
| 4x L40 GPU | |
| GPU Architecture | NVIDIA Ada Lovelace Architecture |
| GPU Memory Bandwidth | 864GB/s |
| GPU Memory | 48 GB GDDR6 with ECC |
| Display Connectors | 4 x DP 1.4a |
| Max Power Consumption | 300W |
| Form Factor | 4.4″ (H) x 10.5″ (L) Dual Slot |
| Thermal | Passive |
| vGPU Software Support | NVIDIA vPC/vApps, NVIDIA RTX Virtual Workstation (vWS) |
| NVENC | NVDEC | 3x | 3x (Includes AV1 Encode & Decode) |
| Secure Boot with Root of Trust | Yes |
| NEBS Ready | Yes / Level 3 |
| Power Connector | 1x PCIe CEM5 16-pin |
