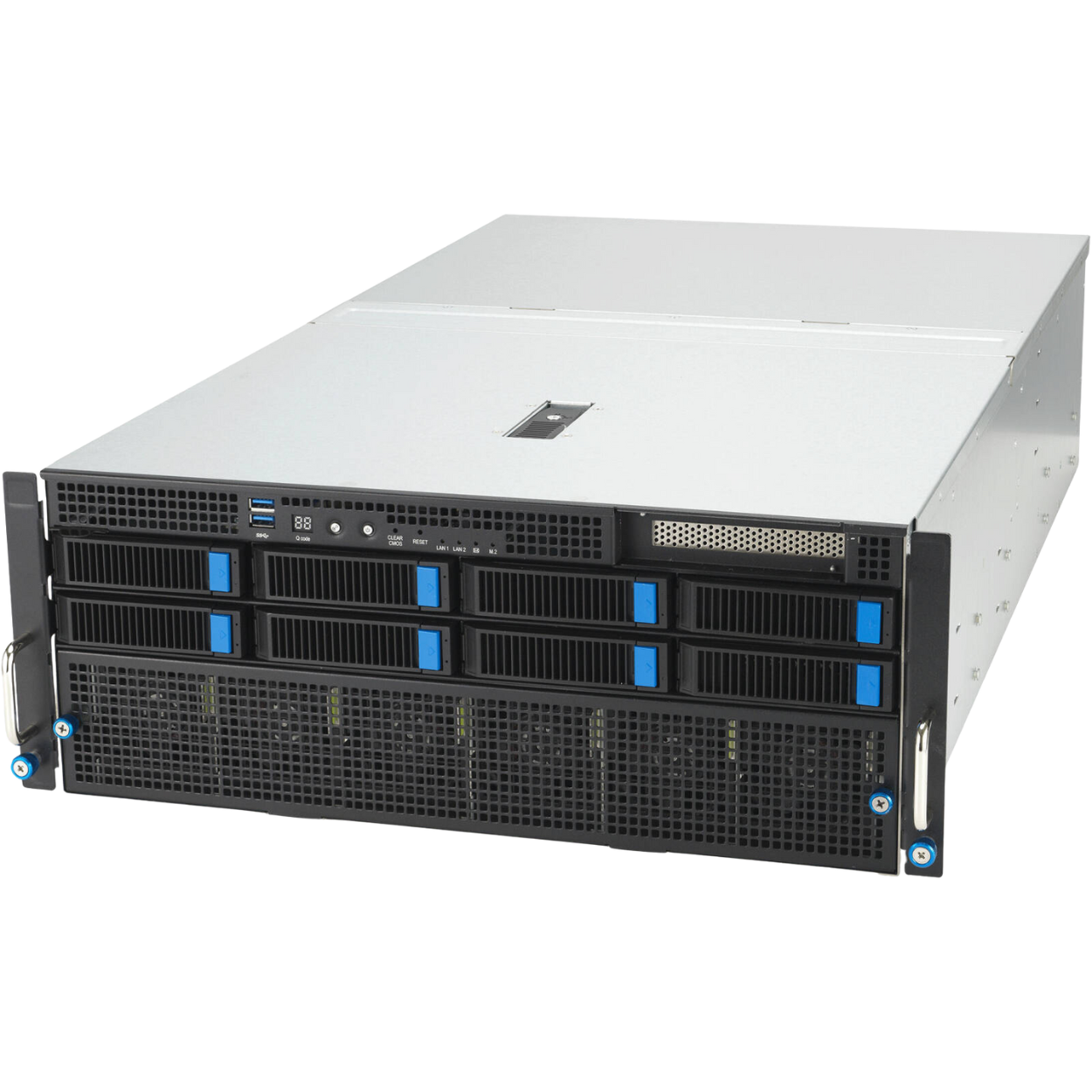

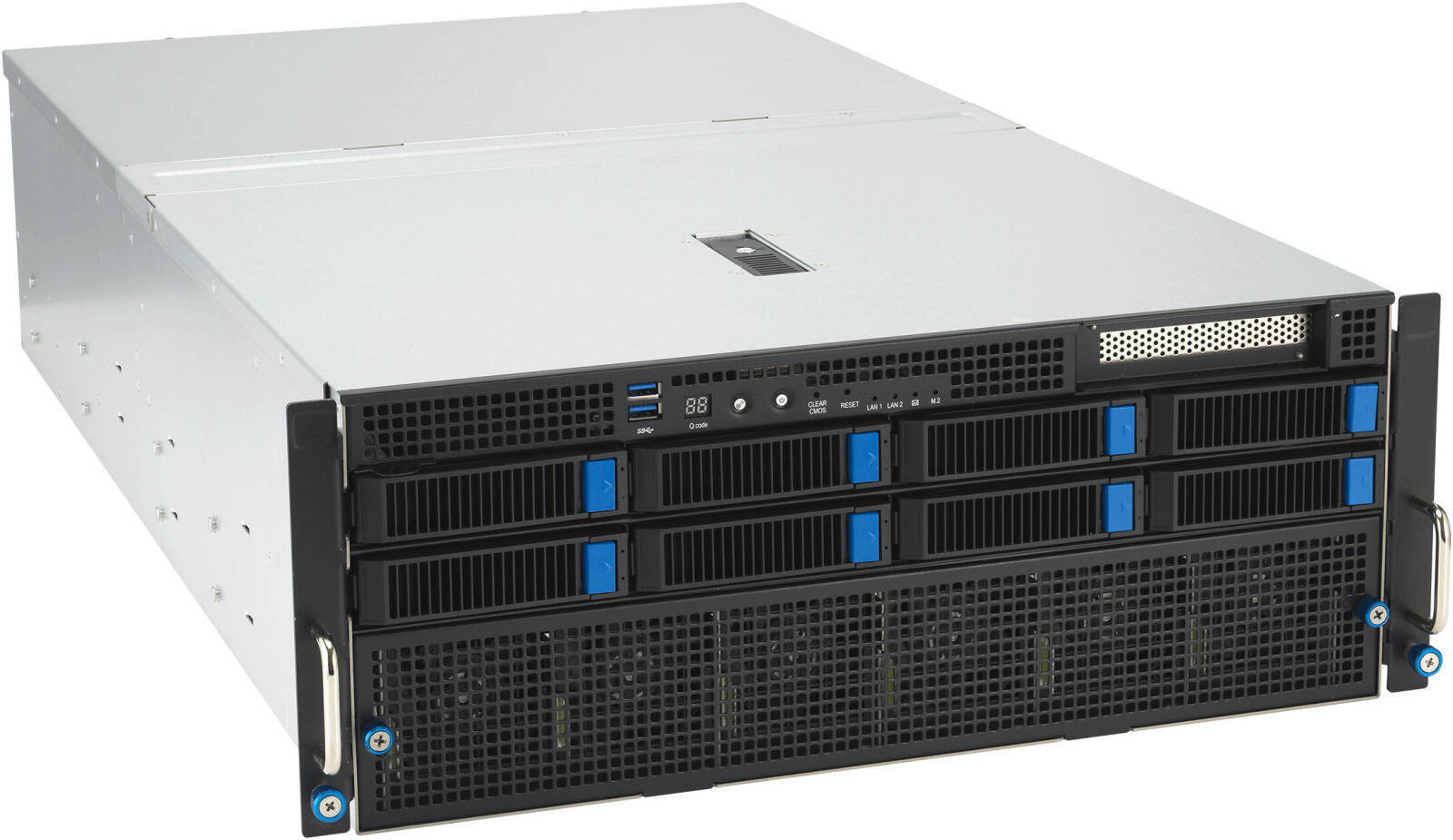

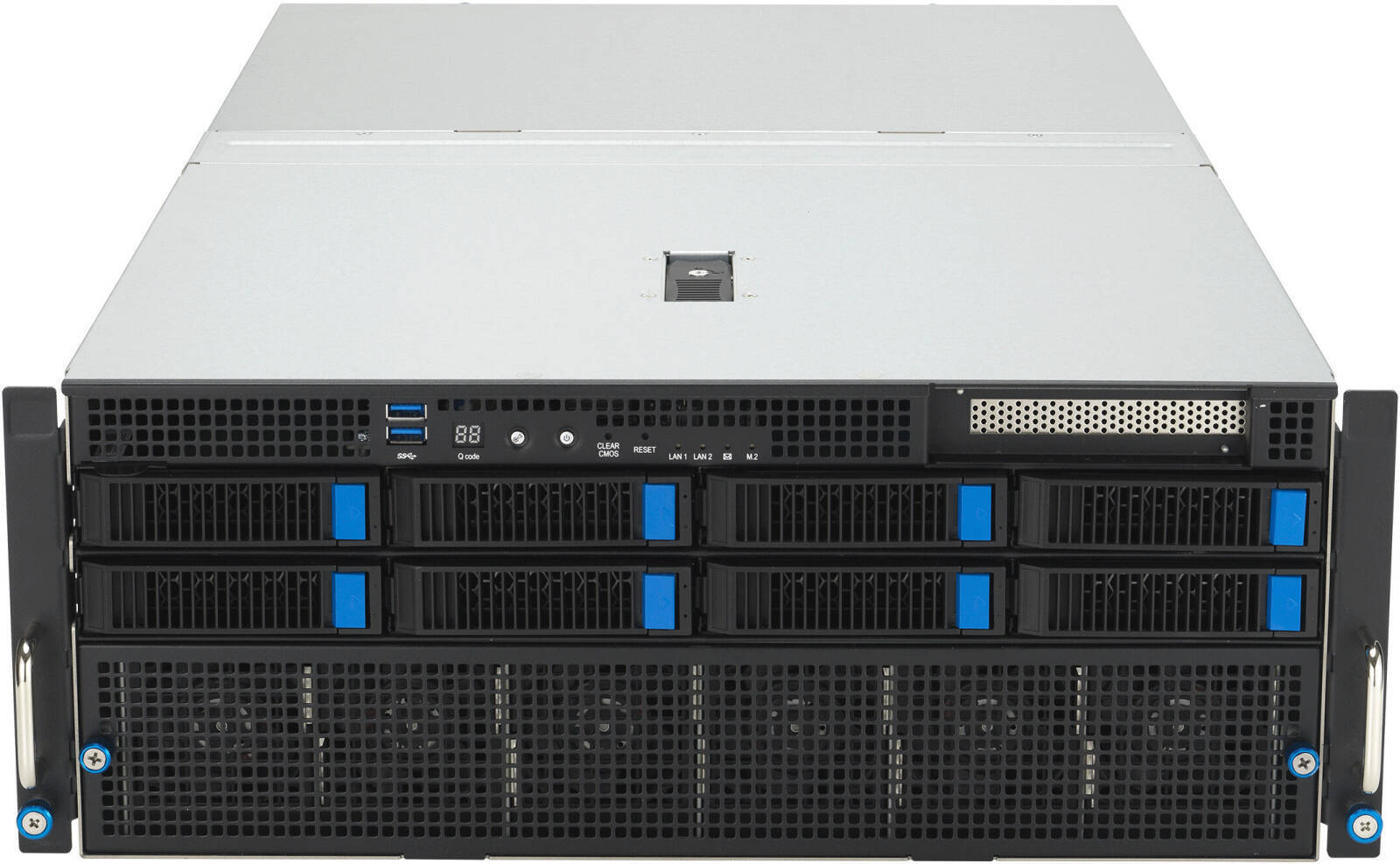

Asus ESC8000-E11
Asus ESC8000-E11 4U Dual-Socket GPU Server, 2x Intel Xeon Platinum 8480+,
24x 32GB RAM, 4x 7.68TB SSD + 2x 1.92TB SSD,
8x NVIDIA H200 NVL 141GB GPU,
Broadcom 9560-16I, TMP Module | ESC8000-E11
- Intel Xeon Platinum 8480+ Processor, 56-Cores & 112-Threads, Up to 3.80 GHz Max Turbo Frequency, 350 W TDP, 105 MB Cache
- ESC8000-E11-SKU2/10G/3KW(2+2)/2PCIe/2NVMe
- 24 x 32GB DDR5 4800 RDIMM
- 4 x 7.68TB 2.5″ NVMe SSD PM9A3 + 2 x 1.92TB 2.5″ NVMe SSD PM9A3
- 8 x NVIDIA H200 NVL Tensor Core Graphics Card, 141GB Memory, 4.8 TB/s Memory Bandwidth, Up to 3,341 TFLOPS
- Broadcom 9560-16I Raid Controller
- TMP Module
ESC8000-E11
4U dual-socket GPU server powered by Intel Xeon Platinum 8480+ processors that supports eight dual-slot GPUs, 32 DIMM, 11 PCIe 5.0, dual NVMe, 4x 3000W Titanium power supplies, OCP 3.0, and Broadcom 9560-16I
Specifications
| System | ESC8000-E11-SKU2/10G/3KW(2+2)/2PCIe/2NVMe |
| CPU | Intel Xeon Platinum 8480+ Processor, 56-Cores & 112-Threads, Up to 3.80 GHz Max Turbo Frequency, 350 W TDP, 105 MB Cache |
| Graphics | 8 x NVIDIA H200 NVL Tensor Core Graphics Card, 141GB Memory, 4.8 TB/s Memory Bandwidth, 7 NVDEC & 7 JPEG Decoders, Up to 3,341 TFLOPS, PCIe, Dual-Slot Air-Cooled Form Factor |
| DIMM | 24 x 32GB DDR5 4800 RDIMM |
| NVMe SSD 1 | 4 x 7.68TB 2.5″ NVMe SSD PM9A3 |
| NVMe SSD 2 | 2 x 1.92TB 2.5″ NVMe SSD PM9A3 |
| RAID Controller | Broadcom 9560-16I |
| TPM Module | Yes |
| Rail Kit | Ball-Bearing Rail Kit 1.0M (Full-Extended) |
